CodeChangeViewer Manual
Abbreviation
CCV = Code Change Viewer     LOC = Line of Change     FOC = File of Change
1. What is CodeChangeViewer?
A tool to:
1). stat. and view cvs/svn repository module line of change, file of change, and so on.
2). stat. repository module source file composition information.
3). provide a unify method to stat. cvs/svn repository, behavior as web service or linux command line tool.

Features
. Get cvs/svn modules LOC, FOC on special branch or between two revisions
. Get user/module summary info of more modules
. Get module source file details composition info
. Can browse code diff from report
. View check-in comments & check-in times in report
. Generate HTML/Plian/Graph report
. Support 3 type reports, one base on cvs/svn log, one base on cvs/svn diff,
  and one base on cvs/svn module source files
. Support file ext-name and path include & exclude filter
. Can be web service or script utility, and easy to use


Project Home: http://sourceforge.net/projects/ccv
2. CodeChangeViewer work-environment: linux + apache + perl + cvs + svn
Server side dependence:
- linux/unix-like os
  all POSIX (linux/BSD/unix-like OSes)

- apache
  it server does not include it, pls install it

- perl
  it is a standard package in almost all linux distributions.
  If you can run "perl" commnad, then it is OK,
  and"perl -v" command will show perl version.

- cvs
  almost all linux distributions include it.
  if you linux server can run "cvs" command, then OK

- svn
  almost all linux distributions include it.
  if you linux server can run "svn" command, then OK. if not, please install it first.
  Make sure - svn supports https protocol if you need to stat. svn repositories which use https.

Supported browser:
- Firefox
- Chrome
- IE7+
- Safari
- Opera
3. CodeChangeViewer Install/Update/Uninstall
1. get CodeChangeViewer package "ccv-2.0-%mmddyyyy%.tar.gz" from http://sourceforge.net/projects/ccv/
2. logon on the linux server which you want to install CodeChangeViewer on it, and switch to root.
3. tar -xzvf ccv-2.0-%mmddyyyy%.tar.gz
   following files will be extracted
   |--INSTALL.pl
   |--ccv.tar.gz
   |--README

4. perl INSTALL.pl --apache-conf=/%apache.configure.file.path%/httpd.conf --prefix=/%install.CCV.in.directory%/
   prefix default is "/usr/local/"
   Example:
   perl INSTALL.pl --apache-conf=/usr/local/apache2/conf/httpd.conf --prefix=/usr/local/
   In this case, CodeChangeViewer install location is /usr/local/ccv

5. restart apache
   Example:
   /usr/local/apache2/bin/apachectl restart

   CodeChangeViewer url will be: http://ip/ccv/ccv.html
1. extract ccv.tar.gz to "--prefix"
2. modify httpd.conf to add CodeChangeViewer ScriptAlias include setting.
   Example:
   include /usr/local/ccv/config/ccv.script.alias.httpd

   file "ccv.script.alias.httpd" generated base on apache's configure and arguments to INSTALL.pl

3. change files privilege property
4. ln -s /usr/local/ccv/web /%apache.DocumentRoot%/ccv
Before do upgrade, pls make sure your linux server can access inernet (sourceforge.net)
1. login on CodeChangeViewer server with root account.
2. go to CodeChangeViewer installed location (Example: /usr/local/ccv)
3. run "./UPDATE.sh"
1. login on CodeChangeViewer server with root account.
2. go to CodeChangeViewer installed location
   Example: cd /usr/local/ccv
3. run "perl UNINSTALL.pl" or "perl INSTALL.pl -U"
4. Maintain repository module configure xml
4.1. Overall Maintain Methods
All CodeChangeViewer cvs/svn module configure files locate at "/CodeChangeViewer/InstalledPath/config"
Example: /usr/local/ccv/config

There are 3 methods to maintain repository modules configure file.

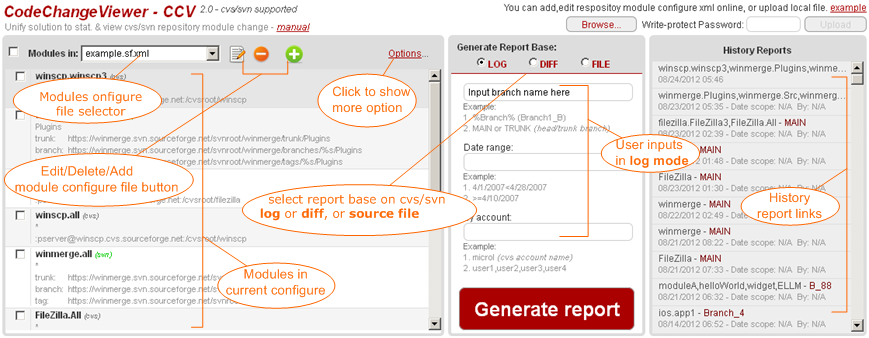

a). Add/edit/delete repositoy modules configure file online through CodeChangeViewer main UI add/edit/delete button
b). Manually put/edit/delete repository modules configure file
    in CodeChangeViewer server "/CodeChangeViewer/InstalledPath/config" directory
c). Edit configure file local then upload it to server through CodeChangeViewer main UI

When add, edit, delete or upload a configure file, you need to provide a password to protect your configure file.
This password can protect your file written by other.
You can update/delete this configure file with this password.
A simple configure file
<configs>
<!-- cvs co :pserver@serverAddress/repositoryPath modulePath -->
<module>
  <id>moduleId1</id>
  <type>cvs</type>
  <access_mode>pserver</access_mode>
  <module>modulePath</module>
  <server>serverAddress</server>
  <repository>/repositoryPath</repository>
  <account_id>AcountId</account_id>
  <account_pw>password</account_pw>
</module>

<!-- svn co https://serverAddress/repositoryPath/trunk/modulePath -->
<!-- svn co https://serverAddress/repositoryPath/branches/modulePath -->
<!-- svn co https://serverAddress/repositoryPath/tags/modulePath -->
<module>
  <id>moduleId2</id>
  <type>svn</type>
  <access_mode>https</access_mode>
  <module>modulePath</module>
  <server>serverAddress</server>
  <repository>/repositoryPath</repository>
  <account_id>AcountId</account_id>
  <account_pw>password</account_pw>
  <trunk_directory>/repositoryPath/trunk</trunk_directory>
  <branch_directory>/repositoryPath/branches</branch_directory>
  <tag_directory>/repositoryPath/tags</tag_directory>
</module>

<!-- svn co svn://serverAddress/repositoryPath/trunk/modulePath -->
<!-- svn co svn://serverAddress/repositoryPath/branches/modulePath -->
<!-- svn co svn://serverAddress/repositoryPath/tags/modulePath -->
<module>
  <id>moduleId3</id>
  <type>svn</type>
  <access_mode>svn</access_mode>
  <module>modulePath</module>
  <server>serverAddress</server>
  <repository>/repositoryPath</repository>
  <account_id>AcountId</account_id>
  <account_pw>password</account_pw>
  <trunk_directory>/repositoryPath/trunk</trunk_directory>
  <branch_directory>/repositoryPath/branches</branch_directory>
  <tag_directory>/repositoryPath/tags</tag_directory>
</module>
</configs>

A example with some true modules on sourceforge.net
<configs>
  <!-- cvs co :pserver@winscp.cvs.sourceforge.net/cvsroot/winscp winscp3 -->
  <module>
    <id>winscp.winscp3</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>winscp3</module>
    <server>winscp.cvs.sourceforge.net</server>
    <repository>/cvsroot/winscp</repository>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>

  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk/Plugins -->
  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches/Plugins -->
  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags/Plugins -->
  <module>
    <id>winmerge.Plugins</id>
    <type>svn</type>
    <access_mode>https</access_mode>
    <module>Plugins</module>
    <server>winmerge.svn.sourceforge.net</server>
    <repository>/svnroot/winmerge</repository>
    <trunk_directory>/svnroot/winmerge/trunk</trunk_directory>
    <branch_directory>/svnroot/winmerge/branches</branch_directory>
    <tag_directory>/svnroot/winmerge/tags</tag_directory>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>

  <!-- cvs co :pserver@filezilla.cvs.sourceforge.net/cvsroot/filezilla FileZilla -->
  <module>
    <id>filezilla.FileZilla</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>FileZilla</module>
    <server>filezilla.cvs.sourceforge.net</server>
    <repository>/cvsroot/filezilla</repository>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>

  <!-- cvs co :pserver@winscp.cvs.sourceforge.net/cvsroot/winscp . -->
  <module>
    <id>winscp.all</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>*</module>
    <server>winscp.cvs.sourceforge.net</server>
    <repository>/cvsroot/winscp</repository>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>

  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk -->
  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches -->
  <!-- svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags -->
  <module>
    <id>winmerge.all</id>
    <type>svn</type>
    <access_mode>https</access_mode>
    <module>*</module>
    <server>winmerge.svn.sourceforge.net</server>
    <repository>/svnroot/winmerge</repository>
    <trunk_directory>/svnroot/winmerge/trunk</trunk_directory>
    <branch_directory>/svnroot/winmerge/branches</branch_directory>
    <tag_directory>/svnroot/winmerge/tags</tag_directory>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>

  <!-- cvs co :pserver@filezilla.cvs.sourceforge.net/cvsroot/filezilla . -->
  <module>
    <id>FileZilla.All</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>*</module>
    <server>filezilla.cvs.sourceforge.net</server>
    <repository>/cvsroot/filezilla</repository>
    <account_id>anonymous</account_id>
    <account_pw></account_pw>
  </module>
</configs>

4.3. Example cvs Module Configure
cvs -d:pserver:userA:pass@winscp.cvs.sourceforge.net:/cvsroot/winscp co winscp3
Base above cvs command line, this module inforamtion should be as following:

...
  <module>
    <id>winscp.winscp3</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>winscp3</module>
    <server>winscp.cvs.sourceforge.net</server>
    <repository>/cvsroot/winscp</repository>
    <account_id>userA</account_id>
    <account_pw>pass</account_pw>
  </module>
...


For "id", you can identify it with "winscp.winscp3", or "winscp3", or "anystring"
which be consistented with following character [0-9] [a-zA-Z] [-\._]

cvs -d:pserver:userA:pass@winscp.cvs.sourceforge.net:/cvsroot/winscp co .

Base above cvs command line, this module inforamtion should be as following:

...
  <module>
    <id>winscp.all</id>
    <type>cvs</type>
    <access_mode>pserver</access_mode>
    <module>*</module> // Set module as * if want to stat all modules in repository
    <server>winscp.cvs.sourceforge.net</server>
    <repository>/cvsroot/winscp</repository>
    <account_id>userA</account_id>
    <account_pw>pass</account_pw>
  </module>
...


4.4. Example svn Module Configure
svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk/Plugins
svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches/Plugins
svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags/Plugins

Base above svn command line, this module inforamtion should be as following:

...
<module>
    <id>winmerge.Plugins</id>
    <type>svn</type>
    <access_mode>https</access_mode>
    <module>Plugins</module>
    <server>winmerge.svn.sourceforge.net</server>
    <repository>/svnroot/winmerge</repository>
    <trunk_directory>/svnroot/winmerge/trunk</trunk_directory>
    <branch_directory>/svnroot/winmerge/branches</branch_directory>
    <tag_directory>/svnroot/winmerge/tags</tag_directory>
    <account_id>userA</account_id>
    <account_pw>pass</account_pw>
</module>
...

svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk
svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches
svn --username userA --password pass co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags

Base above svn command line, this module inforamtion should be as following:

...
<module>
    <id>winmerge.all</id>
    <type>svn</type>
    <access_mode>https</access_mode>
    <module>*</module> // Set module as * if want to stat all modules in repository
    <server>winmerge.svn.sourceforge.net</server>
    <repository>/svnroot/winmerge</repository>
    <trunk_directory>/svnroot/winmerge/trunk</trunk_directory>
    <branch_directory>/svnroot/winmerge/branches</branch_directory>
    <tag_directory>/svnroot/winmerge/tags</tag_directory>
    <account_id>userA</account_id>
    <account_pw>pass</account_pw>
</module>
...

<id/>
required
An unique name(in one .xml configure file) which to identify module used by CodeChangeViewer. It should be consistented with following character [0-9] [a-zA-Z] [-_\.] id can not include following character "/", "\", "[", "]", "{", "}", " " and so on.
<type/>
required
Flag to indicate module is cvs or svn repository, can be "cvs" or "svn".
<module/>
<server/>
<repository/>
required
module: module path
Set module as * if want to stat all modules in repository

server: repository server ip or domain name

repository: repository path



Example:
cvs module
cvs -d:pserver:sun:pass@winscp.cvs.sourceforge.net:/cvsroot/winscp co winscp3

<repository/> is "/cvsroot/winscp"
<module/> is "winscp3"
<server/> is "winscp.cvs.sourceforge.net"

svn module
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags

<repository/> is "/svnroot/winmerge"
<module/> is "*"
<server/> is "winmerge.svn.sourceforge.net"
<account_id/>
<account_pw/>
required
acount name and password to access this repository module

if access server using anonymous method:
set account_id as "anonymous"
set account_pw as ""
<useRuntimeAccount/>
optional
Flag to indicate if provide repository account name and password at runtime rather than set in configure file.

Available value: true/false
Default: false

If "true", "account_id" and "account_pw" value will be provided by user at runtime.
"account_id" and "account_pw" are needless if "useRuntimeAccount" is true.

If "false", "account_id" and "account_pw" needed to be provided in configure file.

This option supports global and module level setting.
Module level priority is higher than global level priority.
Explicit priority is higher than implicit priority.
<trunk_directory/>
<branch_directory/>
<tag_directory/>
Only required by svn module
trunk_directory: svn module trunk location
branch_directory: svn module branches location
tag_directory: svn module tags location

Example:
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/branches
svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/tags

<trunk_directory/> is "/svnroot/winmerge/trunk"
<branch_directory/> is "/svnroot/winmerge/branches"
<tag_directory/> is "/svnroot/winmerge/tages"
<access_mode/>
optional
Special server repository access mode/type, you should set it as your repository reality.

cvs repository can be: ("pserver", "ext"),
and default is "pserver".
CodeChangeViewer now supports "pserver", "ext" will be support later.

svn repository can be: ("svn", "http", "https", "svn+ssh"),
and default is "svn".
CodeChangeViewer now supports ("svn", "http", "https"), "svn+ssh" will be support later.

Example:
if cmd is "svn co svn://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk"
then access_mode should be svn

if cmd is "svn co http://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk"
then access_mode should be http

if cmd is "svn co https://winmerge.svn.sourceforge.net/svnroot/winmerge/trunk"
then access_mode should be https

<filter/>
optional
Define file extend name filter, default is ".*"

Example:
if you want to only stat. jsp, java, js, html files, then customize it as ".jsp;.java;.js;.html".
And you can specify/overwite filter before "Generate Report" by setting them in "ccv options UI".
<viewvc_entry/>
<viewvc_repository/>
optional
viewvc_entry:
If this module server has available viewVC service, pls set it here.
Default or empty value will use CodeChangeViewer diff module to browse code diff.
Example:
<viewvc_entry/>http://ccv.cvs.sourceforge.net/viewvc/ccv/</viewvc_entry/>

viewvc_repository:
For one ViewVC can support to browse module on different repository, ViewVC has a default
repository when you browse module's code, if your module is not in default repository.
Pls set it manually here.

Pls only set <viewvc_repository> if your module is not on default viewvc cvsroot,
otherwise, pls do not use/set it.
Just set these two paramters when you know their usages & meaning, otherwise just not include them or keep them as empty.
<repository_mapping/>
optional, only cvs module use it in some corner-special case
this is for repository directory mapping in some special env, Normal case, pls do not use/set it. Only set it as the mapping-to path when you know that you cvs module really uses repository directory mapping.

Show case which needs this option?

cvs module definition

..
<cvs_module>
    <id>xphone2</id>
    <module>xphone</module>
    <server>cvs.example.com</server>
    <repository>/usr/local/cvsrep</repository>
    <repository_mapping>/depot/cvsrep</repository_mapping>
    <account_pw>pass</account_pw>
    <account_id>userA</account_id>
</cvs_module>
...

But its cvs rlog output is as following

...
RCS file: /depot/cvsrep/xphone/research/java/xphone2/src/Application,v
head: 1.2
branch:
locks: strict
access list:
keyword substitution: b
total revisions: 2;	selected revisions: 2
description:
----------------------------
revision 1.2
date: 2010/03/15 09:27:52;  author: userA;  state: Exp;  lines: +1 -0
add new resource to start one click throw PT.
----------------------------
revision 1.1
date: 2010/02/10 09:38:23;  author: userA;  state: Exp;
First check in for IP phone 2.0
======================================================

RCS file: /depot/cvsrep/xphone/research/java/xphone2/src/res/.cvsignore,v
head: 1.1
branch:
locks: strict
access list:
keyword substitution: kv
total revisions: 1;	selected revisions: 1
description:
----------------------------
revision 1.1
date: 2010/03/15 09:27:52;  author: userA;  state: Exp;
add new resource to start one click throw PT.
=====================================================
...


5.1. UI - Get Report From Repository Log
Generate report base "cvs/svn log", this mode report will include every developer's details
5.2. UI - Get Report From Repository Diff
Generate report base "cvs/svn diff"

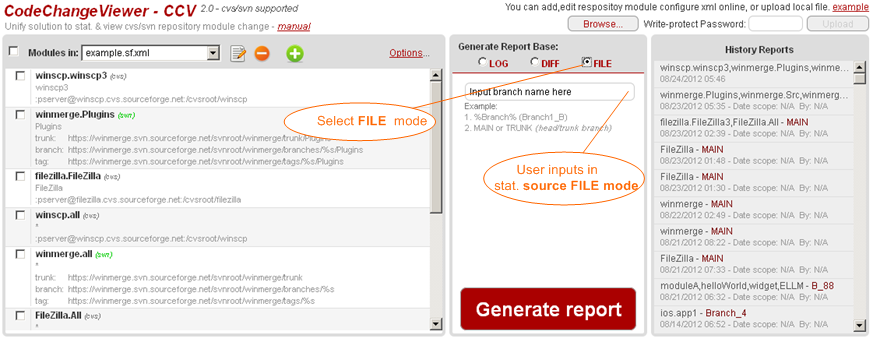

5.3. UI - Get Report From Repository Source Files
Generate report base module source file
5.4. Popuped UI after Click "Generate Report" Button

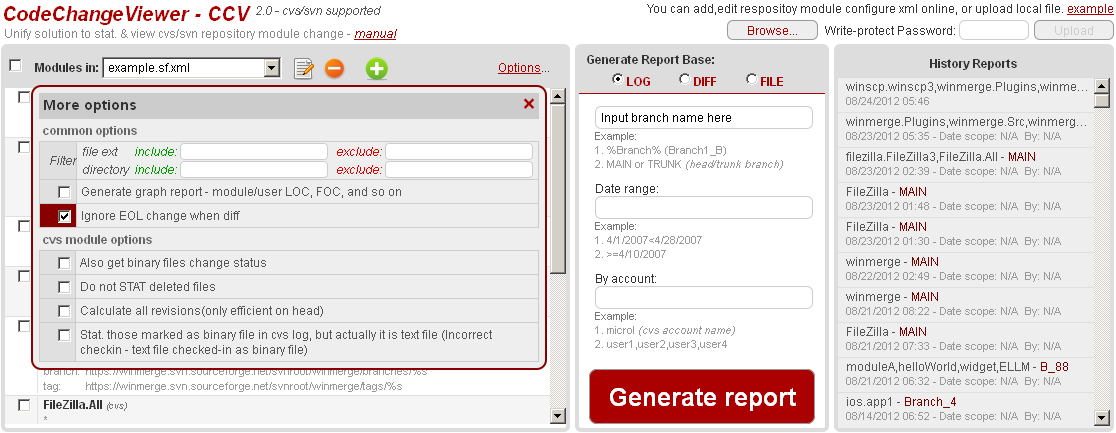

5.5. More Control Options and File/Path Filter

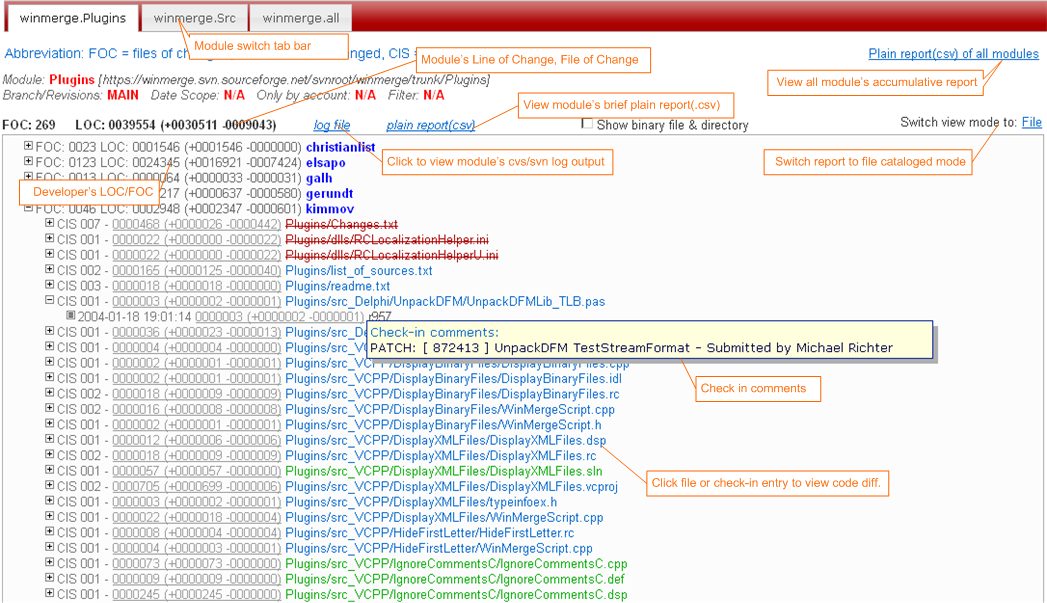

6.1. Report Based on cvs/svn Log

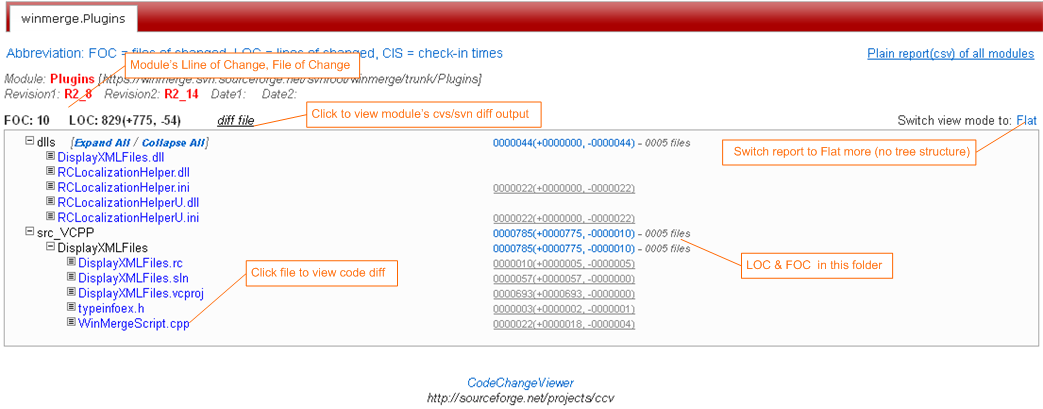

6.2. Report Based on cvs/svn Diff

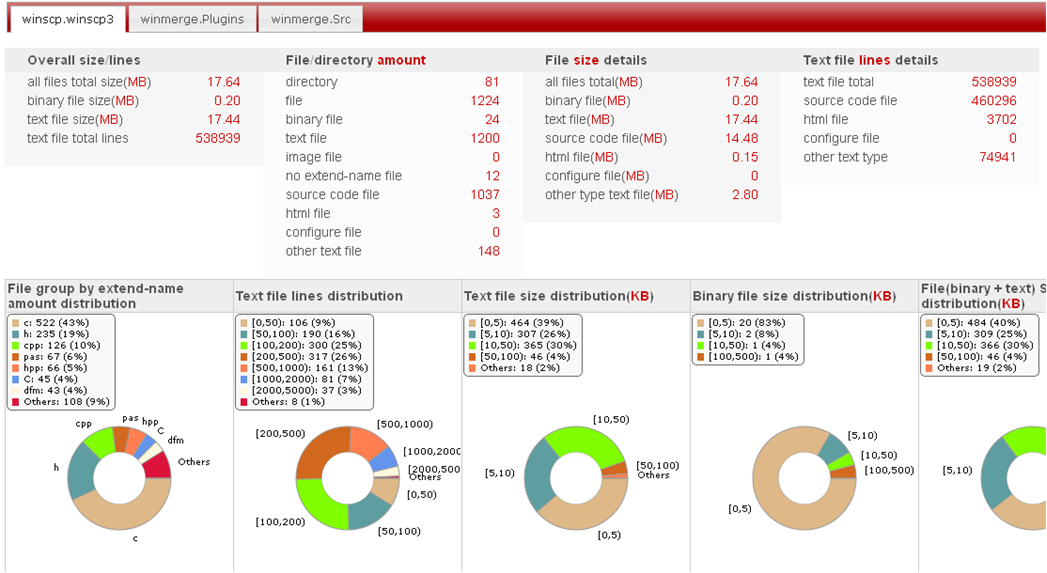

6.3. Report Cased on Module Source File Stat./Analyse
7.1. Usage 1
Get LOC/FOC & othere details of module winscp.winscp3, winmerge.Plugins on trunk

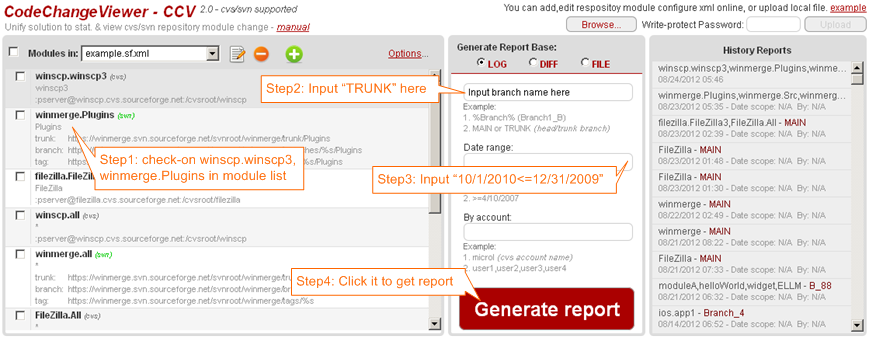

7.2. Usage 2
Get LOC/FOC & othere details of module winscp.winscp3, winmerge.Plugins between 10/1/2010 and 12/31/2010 on head/trunk

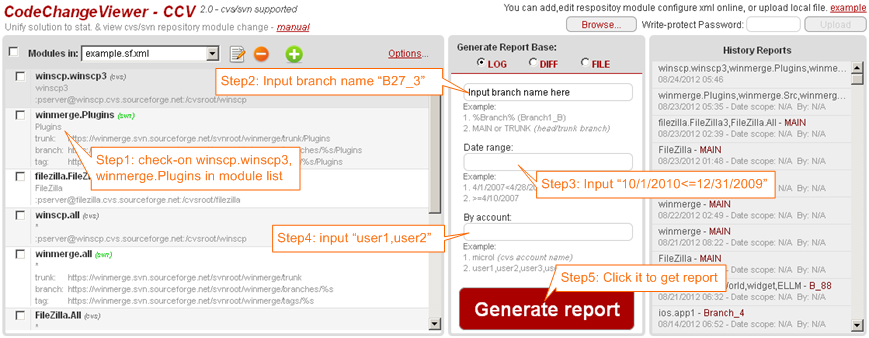

7.3. Usage 3
Get lilongen, user1, user2 changes in module winscp.winscp3, winmerge.Plugins during 10/1/2010~12/31/2010 on branch B27_3

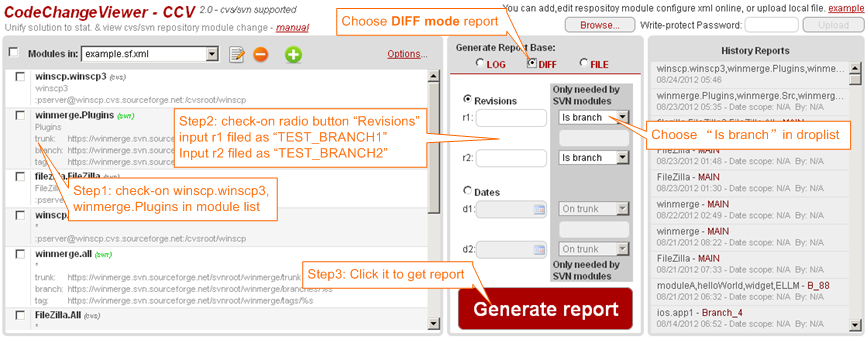

7.4. Usage 4
Get module winscp.winscp3, winmerge.Plugins LOC/FOC between two branches TEST_BRANCH1 and TEST_BRANCH2

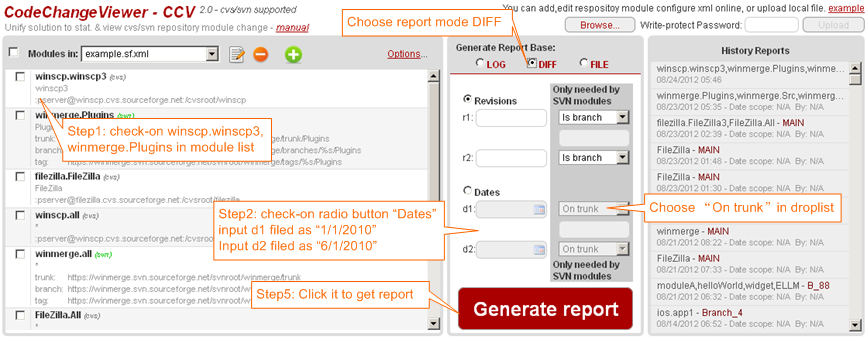

7.5. Usage 5
Get module winscp.winscp3, winmerge.Plugins LOC/FOC between 1/1/2010 & 6/1/2010 on head/trunk
7.6. Usage 6
Get module winscp.winscp3, winmerge.Plugins trunk branch source code files composition inforamtion
CodeChangeViewer API has two kinds:
1). Web API (Http Request)
2). Command Line API

You can integrate CodeChangeViewer with your automation tool through invoking CodeChangeViewer API.

8.1. API - Web API
CodeChangeViewer Web API url is: http://ip/ccv-cgi/wapi.pl

You can call CodeChangeViewer Web API to generate report by sending http post request to http://ip/ccv-cgi/wapi.pl.

Exmaple:
a. Get code change report on special branch, post following paramater:

Simple post data: {
	cmd: "GENERATE",
	mode: "log",
	mids: "cvsModuleId1,svnModuleId2",
	cfg: "config.xml",
	rev: "BRANCH_27_B"
}


With more options: {
	cmd: "GENERATE",
	mode: "log",
	mids: "cvsModuleId1,svnModuleId2",
	cfg: "config.xml",
	rev: "BRANCH_27_B",

	date: "1/5/2010<=12/31/2010",
	wids: "user1,user2,user3",

	filter: {
		includeExts: ".java,.jsp",
		excludeExts: ".xml,.cpp",
		includeDirs: "dir1,dir2",
		excludeDirs="dir3,dir4"
	},

	opts: {
		OcalcAllRevs: 0,
		OdfIgnoreEOL: 1,
		OgenGraph: 0,
		OnotStatDeleted: 0,
		OstatBin: 0,
		OstatBinLines: 0
	}
}


to http://ip/ccv-cgi/wapi.pl

Paramters instructions
cmd:
    required
    WebAPI command name, generate WebAPI command name is "GENERATE"
mode:
    required
    indicator generate which type report

    "log", generate report base on cvs/svn repository module log on specail branch/revison, date range, developer...
    "diff", generate report base on cvs/svn repository module diff between two branches/revisons
    "file", generate report base on cvs/svn repository module special branch/revision source files

mids:
    required
    repository modules id separated by comma, module id defined in the "cfg" file
cfg:
    required
    repository modules definition xml file
rev:
    required
    special branch/revison
date:
    optional
    special a date range
    default is empty, meaning stat. all changes
    if special a date range, then only stat. changes in specified date range
wid:
    optional
    specail developer account, multi account using comma as separator
    default is to stat. and show all accounts information
    if special account, then only stat. changes in specified accounts
    example:
        "user1,user2,user3"

filter:
    optional
    specify "file extend name" and directory include/exclude filter, default is include all files and directories
    use comma as separator if there are multi "file extend name" or "directory path"

    includeExts:
        if not empty, then only include file extend-name matched,
        Multi extend name using comma as separator
        default is empty, include all files
        example:
            ".java,.jsp,.html,.js,.css"

    excludeExts:
        if not empty, then exclude file extend-name matched,
        Multi extend name using comma as separator
        default is empty
        example:
            ".bmp,.jpg,.jpeg,.gif"

    includeDirs:
        if not empty, then only include directory matched,
        Multi directories using comma as separator
        default is empty, include all directory
        example:
            "include/path1,inlcude2/path2,include/path3"

    excludeDirs:
        if not empty, then exclude directory matched,
        Multi directories using comma as separator
        default is empty
        example:
        "exclude/path1,exlcude2/path2,exclude/path3"

opts:
    optional, option to control reporting, default is none

    OcalcAllRevs:
        only used by cvs repository modules
        option which indicate to stat. cvs modules all change
        in a special date range no matter changes in which branch/revison,

        default is 0

    OdfIgnoreEOL:
        option which indicate to ignore EOL change which execute cvs/svn diff command
        default is 1

    OgenGraph:
        option which indicate to generate graph reports
        default is 0

    OnotStatDeleted:
        only used by cvs repository modules
        option which indicate to DO NOT count file already deleted
        default is 0

    OstatBin:
        only used by cvs repository modules
        option which indicate to also stat. binary files
        default is 0

    OstatBinLines:
        only used by cvs repository modules
        option which indicate to also count binary file line of change
        default is 0


Exmaple:
b.1 Get cvs module different report between two branches/revisions, post following paramater:

Simple: {
	cmd: "GENERATE",
	mode: "diff",
	mids: "cvsModule1Id,cvsModule2Id,cvsModule3Id",
	cfg: "config.xml",
	dfAgainst: "revs",
	r1: "BRANCH_26_B",
	r2: "BRANCH_28_B",


b.2 Get svn module different report between two branches/revisions, post following paramater:

Simple: {
	cmd: "GENERATE",
	mode: "diff",
	mids: "svnModule1Id,svnModule2Id,svnModule3Id",
	cfg: "config.xml",
	dfAgainst: "revs",
	r1: "BRANCH_26_B",
	r2: "BRANCH_28_B",

	// rd1b, rd2b, bb are only required and used by svn module, cvs module will ignore them.
	rd1b: "branch", // indicate that "r1" is a branch, available value "branch", "trunk", "OnBranch", "OnTrunk"
	rd2b: "branch", // indicate that "r2" is a branch, available value "branch", "trunk", "OnBranch", "OnTrunk"
	bb: "" // this only used when "rd1b" and "rd2b" value is "OnBranch"
}



b.3 Get cvs module diff report between two dates, post following paramater:
Simple: {
	cmd: "GENERATE",
	mode: "diff",
	mids: "cvsModule1Id,cvsModule2Id,cvsModule3Id",
	cfg: "config.xml",
	dfAgainst: "dates",
	d1: "2/10/2011",
	d2: "9/18/2011"
}


b.4 Get cvs module diff report between two dates, post following paramater:
With more options: {
	cmd: "GENERATE",
	mode: "diff",
	mids: "svnModule1Id,svnModule2Id,svnModule3Id",
	cfg: "config.xml",
	dfAgainst: "dates",
	d1: "2/10/2011",
	d2: "9/18/2011",

	// rd1b, rd2b, bb are only required and used by svn module, cvs module will ignore them.
	rd1b: "OnBranch", // which value can be "OnBranch", "OnTrunk"
	rd2b: "OnBranch", // which value can be "OnBranch", "OnTrunk"
	bb: "B28" 	// if rd1b, rd2b are "OnBranch", then bb value is the branch which d1, d2 are on
				// if rd1b, rd2b are "OnTrunk", bb is useless
}

to http://ip/ccv-cgi/wapi.pl


Paramters instructions
mode:
    required
    "diff" indicate to generate report base two revisions/branches diff
dfAgainst:
    required
    dfAgainst value can be "revs" or "dates"
    "revs"  means that generate report between two branches/revisons, this case needs r1, r2
    "dates" means that generate report between two dates, this case needs d1, d2
r1:
    branch/revison 1, required when dfAgainst is "revs"
r2:
    branch/revison 2, required when dfAgainst is "revs"
d1:
    date 1, required when dfAgainst is "dates"
d2:
    date 2, required when dfAgainst is "dates"

rd1b:
    Only required by svn modules
    parameter indicate that "r1" is "branch" or "trunk" or "OnBranch" or "OnTrunk"
    available value: "branch", "trunk", "OnBranch", "OnTrunk"
rd1b:
    Only required by svn modules
    parameter indicate that "r1" is "branch" or "trunk" or "OnBranch" or "OnTrunk"
    available value: "branch", "trunk", "OnBranch", "OnTrunk"
bb:
    Only required by svn modules
    this parameter only used when "rd1b" and "rd2b" value are "OnBranch"
    bb value is the branch which rd1b and rd2b are on.

Exmaple:
Post following paramater: {
	cmd: "GENERATE",
	mode: "file",
	mids: "cvsModuleId1,cvsModuleId2,svnModuleId1,svnModuleId2",
	cfg: "config.xml",
	rev: "B28_B"
}

to http://ip/ccv-cgi/wapi.pl

Paramters instructions
mode
    "file" indicate to generate report base source files stat./analysing

8.2. API - Command Line API
Simple API command:
perl capi.pl --mode="log" --cfg="config.xml" --mids="cvsModuleId1,svnModuleId1" --rev="B28"

API Command with more options
perl capi.pl \
	--T_SNAP="2011-01-01+123456 " \
	--mode="log" \
	--cfg="config.xml" \
	--mids="cvsModuleId1,svnModuleId1" \
	--rev="B28" \
	--date="1/1/2011<=12/31/2011" \
	--wids="user1,user2,user3"


Simple API command:
cvs modules diff between two branches
perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="revs" --r1="BRANCH" --r2="B28"

cvs modules diff between two dates
perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="dates" --d1="02/08/2011" --d2="08/18/2011"


svn modules diff between two branches
perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="revs" --r1="BRANCH" --r2="B28" --rd1b="branch" --rd2b="branch" --bb=""

perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="revs" --r1="BRANCH" --r2="" --rd1b="branch" --rd2b="trunk" --bb=""

perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="revs" --r1="" --r2="B28" --rd1b="trunk" --rd2b="branch" --bb=""

svn modules diff between two dates
perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="dates" --d1="02/08/2011" --d2="08/18/2011" --rd1b="OnBranch" --rd2b="OnBranch" --bb="B28"

perl capi.pl --mode="diff" --cfg="config.xml" --mids="cvsModuleId1,cvsModuleId1" \
	--dfAgainst="dates" --d1="02/08/2011" --d2="08/18/2011" --rd1b="OnTrunk" --rd2b="OnTrunk" --bb=""

perl capi.pl --mode="file" --cfg="config.xml" --mids="cvsModuleId1,svnModuleId1" --rev="B28"

"Command Line API format"  vs  "Web API format"

jsonData["cmd"]
  Only required by Web API, Command Line API does not need it.
  It should always be "GENERATE".
  jsonData["cmd"]="GENERATE"

--T_SNAP  vs  jsonData["T_SNAP"]
  optional
  time snap string
  If not specified, system will automatically generate it, and set it as current snap time.
  ccv will make a dir named as "T_SNAP", and it will be ccv work space directory,
  all cvs/svn and ccv commands output file will be store in this directory.

  example:
    --T_SNAP="2012-02-20+071214"  vs  jsonData["T_SNAP"]="2012-02-20+071214"
    --T_SNAP="2010-10-01+834568"  vs  jsonData["T_SNAP"]="2010-10-01+834568"

--cfg  vs  jsonData["cfg"]
  required
  specify modules configure definition xml file

  example:
    --cfg="config.xml"  vs  jsonData["cfg"]="config.xml"

--mode  vs  jsonData["mode"]
  required
  specify generated report type, available value: "log", "diff", "file"

  "log", generate report base on cvs/svn repository module log on specail branch/revison, date range, developer...
  "diff", generate report base on cvs/svn repository module diff between two branches/revisons
  "file", generate report base on cvs/svn repository module special branch/revision source files

  example:
    --mode="log"  vs  jsonData["mode"]="log"
    --mode="diff"  vs  jsonData["mode"]="diff"
    --mode="file"  vs  jsonData["mode"]="file"

--mids  vs  jsonData["mids"]
  required
  specify module ids which want to stat.(module id defined in the "cfg" file)
  If there are multi module id, using comma as separator
  if its value is "*" means that get all modules report

  example:
    --mids="mid1"  vs  jsonData["mids"]="mid1"
    --mids="mid1,mid2,mid3"  vs  jsonData["mids"]="mid1,mid2,mid3"
    --mids="*"  vs  jsonData["mids"]="*"

--rev  vs  jsonData["rev"]
  required when mode is "log" or "file"
  specify revsion/branch which you want to get.
  Use "MAIN" as trunk branch

  example:
    --rev="branch1"  vs  jsonData["rev"]="branch1"
    --rev="MAIN"  vs  jsonData["rev"]="MAIN"

--date  vs  jsonData["date"]
  optional when mode is "log" or "file"
  not needed in "diff" mode
  special a date range
  default is empty, meaning stat. all changes
  if special a date range, then only stat. changes in specified date range

  example:
    --date="2/1/2011<=5/1/2011"  vs  jsonData["date"]="2/1/2011<=5/1/2011"
    --date="2/1/2011<5/1/2011"  vs  jsonData["date"]="2/1/2011<5/1/2011"
    --date=">=2/1/2011"  vs  jsonData["date"]=">=2/1/2011"
    --date="<10/1/2011"  vs  jsonData["date"]="<10/1/2011"

--wids  vs  jsonData["wids"]
  optional when mode is "log" or "file"
  not needed in "diff" mode
  specify repository account which you want to get.
  If there are multi account, using comma as separator.
  default is to stat. and show all accounts information.
  Empty value means to get all account info

  example:
    --wids=""  vs  jsonData["wids"]=""
    --wids="user1"  vs  jsonData["wids"]="user1"
    --wids="user1,user2,user3"  vs  jsonData["wids"]="user1,user2,user3"

--dfAgainst  vs  jsonData["dfAgainst"]
  Only required when mode is "diff"
  not needed in "log" or "file" mode
  specify diff operation is compare two resvison/branchs or dates
  Available value: "revisions", "dates"

  example:
    --dfAgainst="revisions"  vs  jsonData["dfAgainst"]="revisions"
    --dfAgainst="dates"  vs  jsonData["dfAgainst"]="dates"

--rd1b  vs  jsonData["rd1b"]
  Only required when mode is "diff"
  not needed in "log" or "file" mode
  available value: "trunk", "OnTrunk", "branch", "OnBranch"

--rd2b  vs  jsonData["rd2b"]
  Only required when mode is "diff"
  not needed in "log" or "file" mode
  available value: "trunk", "OnTrunk", "branch", "OnBranch"

--bb  vs  jsonData["bb"]
  Only required when mode is "diff"
  not needed in "log" or "file" mode
  if --rd1b and --rd1b are "OnBranch", --bb means --r1 and --r2 or --d1 and --d2 are on -bb branch

--r1  vs  jsonData["r1"]
  Only required when mode is "diff" and parameter --dfAgainst is "revisons"
  not needed in "log" or "file" mode
  specify revison1 which will be compare to another revison(--r2)
  Use "MAIN" as trunk branch

  example:
    --r1="MAIN"  vs  jsonData["r1"]="MAIN"
    --r1="branch1"  vs  jsonData["r1"]="branch1"

--r2  vs  jsonData["r2"]
  Only required when mode is "diff" and parameter --dfAgainst is "revisons"
  not needed in "log" or "file" mode
  specify revison2 which will be compare to another revison(--r1)
  Use "MAIN" as trunk branch

  example:
    --r2="MAIN"  vs  jsonData["r2"]="MAIN"
    --r2="branch2"  vs  jsonData["r2"]="branch2"

--d1  vs  jsonData["d1"]
  Only required when mode is "diff" and parameter --dfAgainst is "dates"
  not needed in "log" or "file" mode
  specify date1 which will be compare to another date(--d2)
  date format should be "YYYY-MM-DD"

  example:
    --d1="2011-01-01"  vs  jsonData["d1"]="2011-01-01"
    --d1="2011-10-10"  vs  jsonData["d1"]="2011-10-10"

--d2  vs  jsonData["d2"]
  Only required when mode is "diff" and parameter --dfAgainst is "dates"
  not needed in "log" or "file" mode
  specify date2 which will be compare to another date(--d1)
  date format should be "YYYY-MM-DD"

  example:
    --d2="2011-01-01"  vs  jsonData["d2"]="2011-01-01"
    --d2="2011-10-10"  vs  jsonData["d2"]="2011-10-10"

filter[includeExts]
filter[excludeExts]
filter[includeDirs]
filter[excludeExts]
  Optional
  specify "file extend name" and directory include/exclude filter, default is include all files and directories
  use comma as separator if there are multi "file extend name" or "directory path"

--filter[includeExts]  vs  jsonData["filter[includeExts]"]
  Optional
  Use to specify included file extend name
  Using comma as multi file extend name separator
  if is not specified, means include all file

  example:
    --filter[includeExts]=".txt,.java,.cpp,.hpp"  vs  jsonData["filter[includeExts]"]=".txt,.java,.cpp,.hpp"

--filter[excludeExts]  vs  jsonData["filter[excludeExts]"]
  Optional
  Use to specify excluded file extend name
  Using comma as multi file extend name separator
  if is not specified, means include all file
  example:
    --filter[excludeExts]=".txt,.java,.cpp,.hpp"  vs  jsonData["filter[excludeExts]"]=".txt,.java,.cpp,.hpp"

--filter[includeDirs]  vs  jsonData["filter[includeDirs]"]
  Optional
  Use to specify included directory(s)
  Using comma as multi directories
  if is not specified, means include all directories

  example:
    --filter[includeExts]="a/b,c/d,e/f/g"  vs  jsonData["filter[includeExts]"]="a/b,c/d,e/f/g"

--filter[excludeDirs]  vs  jsonData["filter[excludeDirs]"]
  Optional
  Use to specify excluded directory(s)
  Using comma as multi directories
  if is not specified, means include all directories

  example:
    --filter[excludeDirs]="a/b,c/d,e/f/g"  vs  jsonData["filter[excludeDirs]"]="a/b,c/d,e/f/g"


opts[OgenGraph]
opts[OcalcAllRevs]
opts[OstatBin]
opts[OstatBinLines]
opts[OnotStatDeleted]
opts[OdfIgnoreEOL]
  Optional
  opitions to control reporting, default is none

--opts[OgenGraph]  vs  jsonData["opts[OgenGraph]"]
  Optional
  Use to specify if generate graph report
  available value: 0, 1

  example:
    --opts[OgenGraph]=0  vs  jsonData["opts[OgenGraph]"]=0
    --opts[OgenGraph]=1  vs  jsonData["opts[OgenGraph]"]=1

--opts[OcalcAllRevs]  vs  jsonData["opts[OcalcAllRevs]"]
  Optional, only work for cvs module when do "log" mode report and --rev is "MAIN"
  option which indicate to stat. cvs modules all change
  in a special date range no matter changes in which branch/revison,
  available value: 0, 1

  example:
    --opts[OcalcAllRevs]=0  vs  jsonData["opts[OcalcAllRevs]"]=0
    --opts[OcalcAllRevs]=1  vs  jsonData["opts[OcalcAllRevs]"]=1

--opts[OstatBin]  vs  jsonData["opts[OstatBin]"]
  Optional
  Use to specify if stat. binary files
  available value: 0, 1

  example:
    --opts[OstatBin]=0  vs  jsonData["opts[OstatBin]"]=0
    --opts[OstatBin]=1  vs  jsonData["opts[OstatBin]"]=1

--opts[OstatBinLines]  vs  jsonData["opts[OstatBinLines]"]
  Optional, only work for cvs module when do "log" mode
  available value: 0, 1

  example:
    --opts[OstatBinLines]=0  vs  jsonData["opts[OstatBinLines]"]=0
    --opts[OstatBinLines]=1  vs  jsonData["opts[OstatBinLines]"]=1

--opts[OnotStatDeleted]  vs  jsonData["opts[OnotStatDeleted]"]
  Optional, only using when --mode=="log"
  option which indicate to DO NOT count file already deleted
  available value: 0, 1

  example:
    --opts[OnotStatDeleted]=0  vs  jsonData["opts[OnotStatDeleted]"]=0
    --opts[OnotStatDeleted]=1  vs  jsonData["opts[OnotStatDeleted]"]=1

--opts[OdfIgnoreEOL]  vs  jsonData["opts[OdfIgnoreEOL]"]
  Optional
  Use to specify if ignore EOL when execute diff command
  available value: 0, 1

  example:
    --opts[OdfIgnoreEOL]=0  vs  jsonData["opts[OdfIgnoreEOL]"]=0
    --opts[OdfIgnoreEOL]=1  vs  jsonData["opts[OdfIgnoreEOL]"]=1



------------------------------------------------------------------------------------------------------------------------------------------

Feature statCVS statSVN CodeChangeViewer Source Counter Feature
Module onfig file maintain × × × Module onfig file maintain
Multi modules one time × × × Multi modules one time
As web service × × × As web service
As application/utility As application/utility
Easy using/convenience ☆☆ ☆☆ ☆☆☆☆ ☆☆☆☆ ☆☆ Easy using/convenience
Report base on cvs/svn log
× File/directory amount
Report base on cvs/svn diff × × × File size/line information
Graph report × File size distribution
Graph types ☆☆☆☆ ☆☆ ☆☆ × Line distribution
HTML report
Multi-modules summary × × × Test unit analysis
File/Path filter File/Path filter
Browse code diff × × × Multi-lanaguage
Source code files stat. × Files amount in dir
CodeChangeViewer Relative URLs
